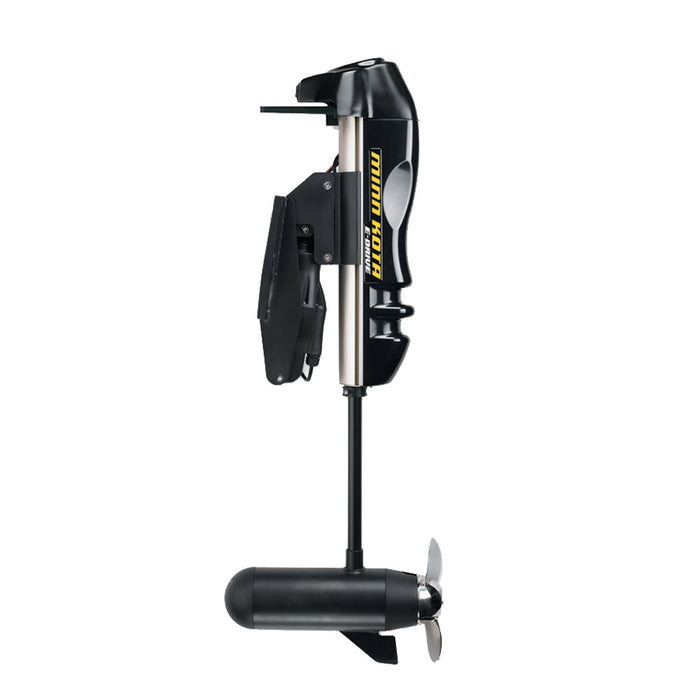

Minn Kota E-Drive - Electric Outboard - 2Hp - 48V - 20" Shaft

E-Drive
Electric Outboard

Minn Kota's powerful E-Drive Electric Outboard motor is perfect for lakes with gasoline restrictions. The quiet 2-hp power plant will move a full-size pontoon boat up to 5 mph with no fumes, no emissions and no messy gasoline. E-Drive can run up to 2 hours at 100% on a single charge, and features a special tilt-lock mechanism for safe and secure trailering. Our bolt-on transom model connects directly to your boat's standard cable linkage, while the clamp-on mount utilizes Tilt Tiller control.

Electronic Throttle Control

Get fingertip control from this ultra-responsive throttle lever, which has forward/neutral/reverse positions and push-button tilt up/down. It mounts either on the binnacle or side mount at the cockpit, and features a key switch for added safety.

Bolt-on Transom Mount

Our standard E-Drive motor features a bolt-on transom bracket. The bracket includes a power tilt mechanism and a built-in breakaway mount that protects the motor from underwater hazards.

Tilt Gauge

Dash-mounted tilt gauge provides an instant readout of motor position.

Minn Kota Actuators

E-Drive models are powered by intelligently designed actuators with 12V DC motors. They operate smoothly, quietly and dependably, and also feature the industry's highest IP68 waterproof rating.

Realtime Battery Gauge

Instantly see how many hours of run time you have left on your battery with this real time, back-lit gauge. It also features a fuel gauge showing battery condition, as well as throttle power level.

Stainless Steel Prop

A special sheer pin protects this stainless steel prop from damage when encountering underwater obstacles. The prop also features a replaceable, hub-mounted zinc anode to fight galvanic corrosion.

Digital Maximizer

Digital Maximizer™ controls and optimizes power to extend battery life and reduce damaging heat. You'll stay on the water up to five times longer on a single charge.

Cool, Quiet Power

Nothing runs cooler or more quietly than a Minn Kota. Our extra large winding's and commutators dissipate heat, resulting in cooler operation, extended battery power, and longer motor life. And our unique bearing system reduces friction to cut fish-spooking noise. So quiet, they'll never hear you coming.

2-Year Warranty

This motor is backed up with Minn Kota’s two-year warranty.

Specifications

• Control: Throttle
• Volts: 48
• Max Thrust: 2 HP
• Shaft Length: 20"
• Speed Control: Variable
• Max. Amp Draw: 40
• Prop: Stainless Steel


WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Included Propeller: Stainless Steel
• Autopilot: No
• Control Type: Outboard Cable Linkage
• Mounting Style: Clamp
• Salt Water/Fresh Water: Fresh
• Shaft Length (Inches): 20"
• Thrust (Pounds): 2 HP
• Built-In Transducer: No
• Voltage - Input Range (Volts): 48v
• Series: EO
• Box Dimensions: 14"H x 22"W x 56"L WT: 100 lbs
• UPC: 029402018291
